Specification
Profile types
Coding
- R: Right-angled connection
Steel, zinc plated, blue passivated SZ
Information
Automatic connectors GN 23b (Coding R) fasten aluminum profiles together at right angles. The connection can be freely positioned and slid along the slot. Automatic connectors GN 23b (Coding S) fasten aluminum profiles together on the end faces to extend them while securing them against twisting. Machining of the profile is not necessary.

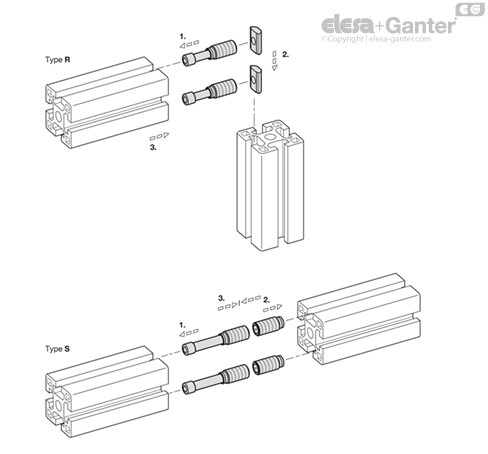

For assembly, first insert the socket cap screw along the slot and then screw in the lightly lubricated threaded bushings. Minor burr formation is possible. Automatic connectors are used in pairs opposite each other. If panels are used in the slot, they must be suitably pocketed.
Automatic connectors are supplied in bundles. The table shows the quantity included in each bundle.
