Specification
Types
Steel
blackened
Tensile strength class 5.8
Cover
Plastic, light grey
Ball knobs DIN 319 -
Plastic, Duroplast
black, shiny finish
Safety circlip
Plastic (Polyacetal)
Information

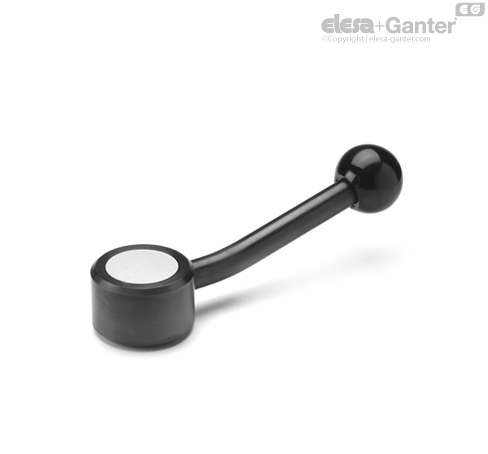

The overall height of tension levers GN 125 is reduced to a minimum.
As all other adjustable levers, they are ideal whenever parts have to be clamped in a confined space, or a particular lever position is required. The threaded insert is connected with the hub via serrations which can be disengaged.
Pulling the lever, disengages the serrations and the lever can be swivelled to the ideal clamping position. On releasing the lever it will automatically re-engage.
