Specification
- Type B: Without rest position, with plastic knob
- Type BN: Without rest position, with stainless steel knob

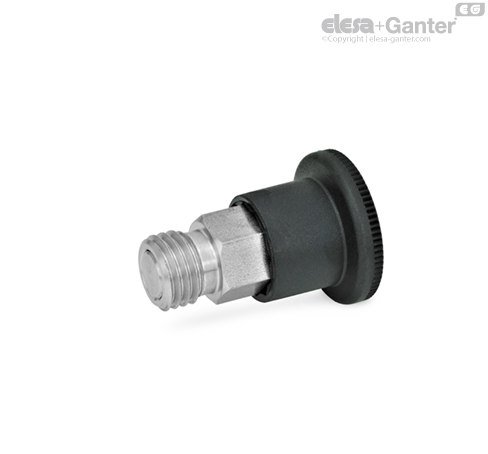

- Type C: With rest position, with plastic knob
- Type CN: With rest position, with stainless steel knob
Stainless steel AISI 316L
- Plastic, Polyamide (PA) for Type B / C
- Stainless steel AISI 316 for Type BN / CN
Stainless steel AISI 316Ti
Information
Mini indexing plungers GN 822.10 are distinguished for their small dimensions.
Based on the principle of the mini indexing plungers GN 822 , this model combines their clever type of construction with a complete series of all current sizes of bolts and threads.
Pulling the plunger pin will release the hex nut which can then be tightened with an open-end spanner.
In types C and CN, the button can be turned by 30° after retracting the indexing pin, holding it in the „retracted“ position using the indexing lock.
