Specification
Types
- Type SG: Operation with star knob
- Type DK: Operation with triangular spindle (DK7)
- Type VK7: Operation with square spindle A/F7
- Type VK8: Operation with square spindle A/F8
- Type VDE: Operation with double bit
Version in Steel
Lock housing / operating bolt
Zinc die casting, chrome plated
Cam latch
Sheet Steel zinc plated, blue passivated
Distance piece
Aluminium
Star knobs VCT.
Plastic (Polypropylene PP)
black, matt

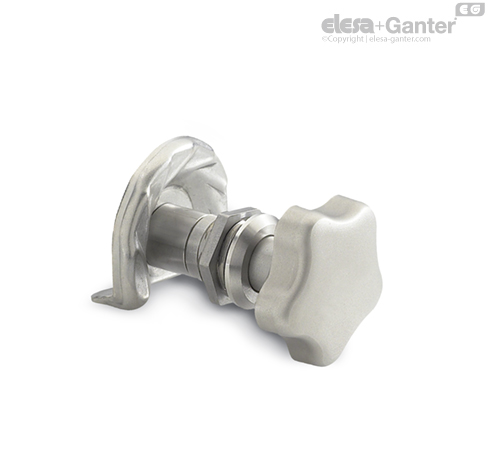

Version in Stainless Steel
Stainless Steel AISI 303 NI
Cam latch AISI 304
Stainless Steel-Star knob GN 5334
AISI 304
Protection class IP 65
Information
Latches GN 119 have a pulling-in range of 10 mm. Locking is achieved by turning the latch clockwise.
The operating bolt of the stainless steel version is fitted with an O-ring for sealing.
Construction and Assembly Instructions
By turning the latch clockwise the stepped cam latch moves up behind the door frame and pulls the door in.
The large pulling-in range of the cam (10 mm) allows these locks to be used successfully on doors with sealing strips. When selecting clamping range ‚A‘ the thickness of the door seal might have to be taken into consideration.
To fit the lock, the door will have to be provided with a hole as per sketch shown at a distance from the door frame to hole center of 23 mm.
The lock housing with the preassembled operating bolt is fitted into the hole from the front and held in position with the hexagon nut. The distance piece and the cam latch are then fitted at the rear and fixed with the hexagon nut.
In volume production, the mounting borehole in the door leaf is usually made by punching or laser machining.
For small series and steel sheets below 2 mm thickness, the sheet metal punshes GN 123 are the tool of choice.
The installation bore diameter can also be set by drilling / milling as shown in the outline drawings.
