Specification
Types
- Type N: Without plastic cap
- Type G: With plastic cap, gliding

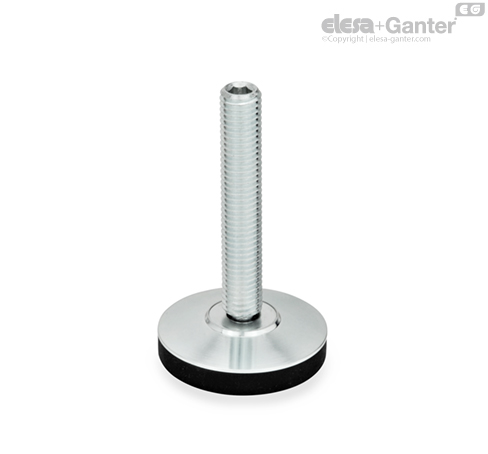

- Type R: With plastic cap, non-gliding
Foot plate / Screw
Steel
- Zinc plated, blue passivated
Retaining spring
Stainless steel AISI 301
Technopolymer (Polyacetal POM)
Cream RAL 9001
Elastomer (TPE)
Hardness ≈ 75 Shore A
Black
Information
Leveling feet GN 6311.4 are used for installing and leveling devices and equipment.
The pin diameter d3 is smaller than the core diameter of the thread, with the effect that the screw can be turned in at the pin. The pressure pin is easily inserted into the plate, with the retaining spring ensuring that the assembly is secure in axial direction.
The values listed in the table for static load capacity refer to a purely vertical load in relation to the leveling foot. Under normal operating conditions, bending loads or angular loads are not uncommon and result in a reduction of load capacity which must be taken into consideration.
