Specification
Types
- Type KS: with plastic cap, gliding
- Type KR: with plastic cap, non-gliding

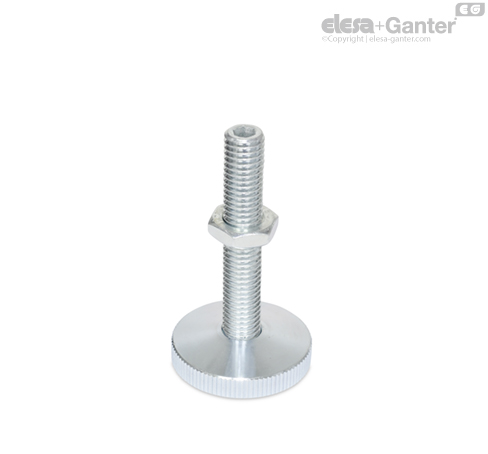

Version in Steel ST
- Tensile strength class 5.8
- zinc plated, blue passivated
- Hexagon nut ISO 4035, Steel zinc plated, blue passivated

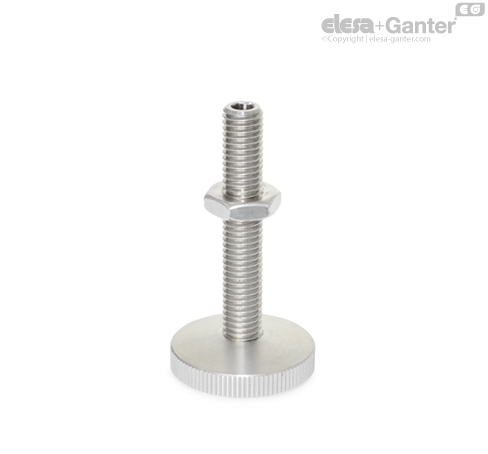

Version in Stainless Steel NI
- Hexagon nut ISO 4035, Stainless Steel AISI 304
Type KS
Technopolymer (Polyacetal POM)
white (natural colour) RAL 9001
Type KR
Elastomer (TPE)
73 shore A ≈, black
Information
Levelling mount GN 339 are used for applications in cases where no jointed link is required between foot and adjusting screw.
For this reason they offer the advantage of reduced height.
The gliding and/or the non-gliding protective cap is safely fixed in the foot.
