Specification
Types

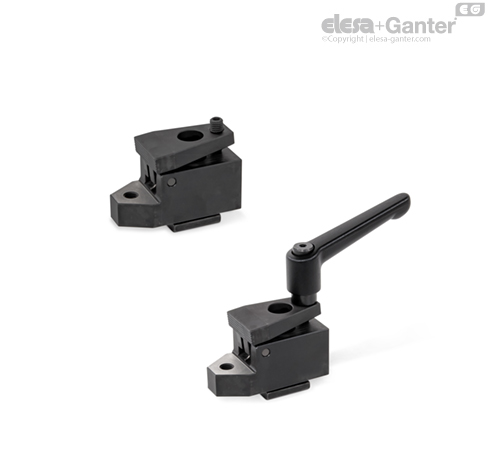

- Type E: With serrated clamping jaw
- Type P: With prism clamping jaw
Coding
- G: Clamping stroke with ball point screw
- K: Clamping stroke with adjustable hand lever
Clamping mechanisms
Steel
Ball point screw (coding G)
Adjustable hand lever (coding K)
Powder coated
Black RAL 9005, textured finish
Steel, blackened
Ball hardened
Information
With side clamps GN 9190.2, workpieces are clamped with a pivoted clamping jaw. The clamping force acts laterally and from above to pull down on the workpiece and clamp it against fixed stops and the supporting surface. The thread integrated in the support accommodates any positioning or support elements as required.
The clamping stroke of the clamping jaw results from the screw-in depth of the clamping thread d4. When the clamping screw is released, the clamping jaw is returned by spring force. The low overall height of the side clamps allows full-surface machining of the workpiece.
Side clamps can be screwed in directly, e.g. in a mounting plate, or fastened to machine tables with T-slots. In addition, they can be mounted in any position perpendicular to the T-slot using the slotted support blocks GN 9190.3, which are available as accessory.
