Specification
Type
- Type B: Smooth contact face
- Type BR: Smooth contact face, with automatic return
Stainless Steel AISI 431
tempered
Ball
Stainless Steel AISI 420C
nickel plated
Spring element
Plastic (PUR)
(Type BR)
Information

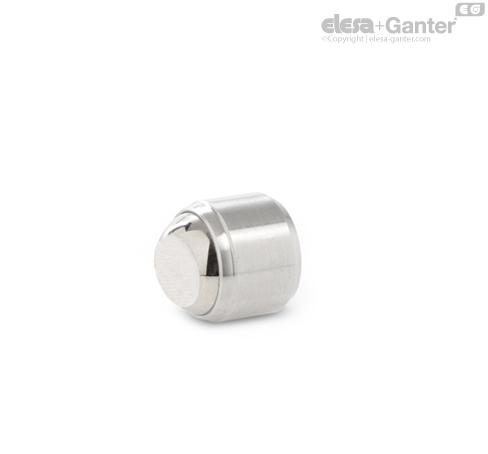

GN 709.25 clamping pads are used as movable supports or plungers for clamping workpieces. They can also be used as stops.
After the clamping process, the contact surfaces of clamping pads automatically reset themselves to their initial position. This prevents the bearing from jamming in an inclined position when the workpiece is inserted.
The bearing can be rotated by a maximum of 9° and is secured against further rotation.
