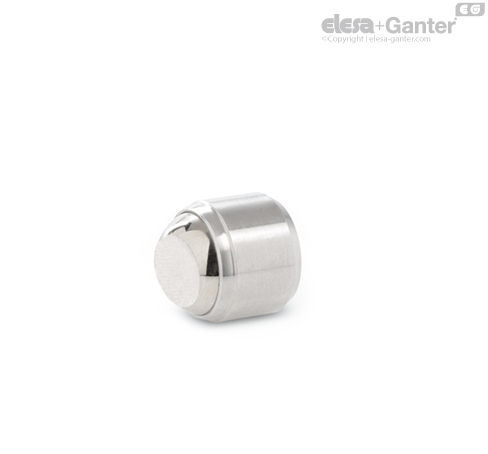

GN 709.25-BR Clamping Pads Smooth contact face, with automatic return

GN 709.25 clamping pads are used as movable supports or plungers for clamping workpieces. They can also be used as stops.

After the clamping process, the contact surfaces of clamping pads automatically reset themselves to their initial position. This prevents the bearing from jamming in an inclined position when the workpiece is inserted.

The bearing can be rotated by a maximum of 9° and is secured against further rotation.

• Stainless Steel characteristics

• ISO-Fundamental Tolerances

• Serrated hard metal ball
