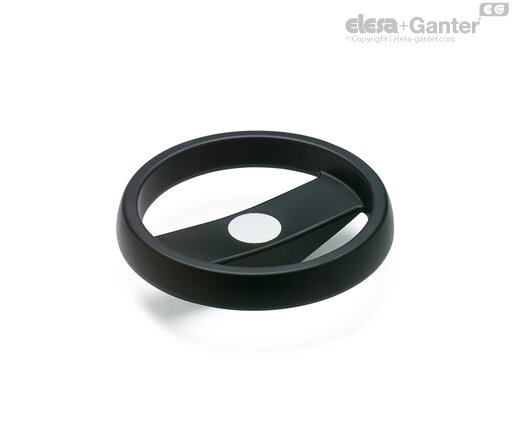

VRTP. Spoked handwheels Without handle

Material

High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.

Boss-cap

• Anodised aluminium self-adhesive front plate.
• VRTP. 375: cover in polyester based technopolymer (PBT), RAL 7035 grey colour, glossy finish, press-fit assembly.

Standard executions

Black-oxide steel boss, H7 reamed hole.

H9 reamed hole for executions with keyway.

• VRTP.: without handle.
• VRTP+I: with revolving handle I.621+x in technopolymer.
• VRTP+IEL: with revolving handle IEL+x SOFT in technopolymer coated with "Soft-touch" thermoplastic elastomer (TPE).
• VRTP+IR: with fold-away handle IR.620 in technopolymer.
• K: index for executions with hole and keyway in compliance with DIN 6885/1, tolerance P9 i.e.:

78411-R-K VRTP.80 A-8-K
