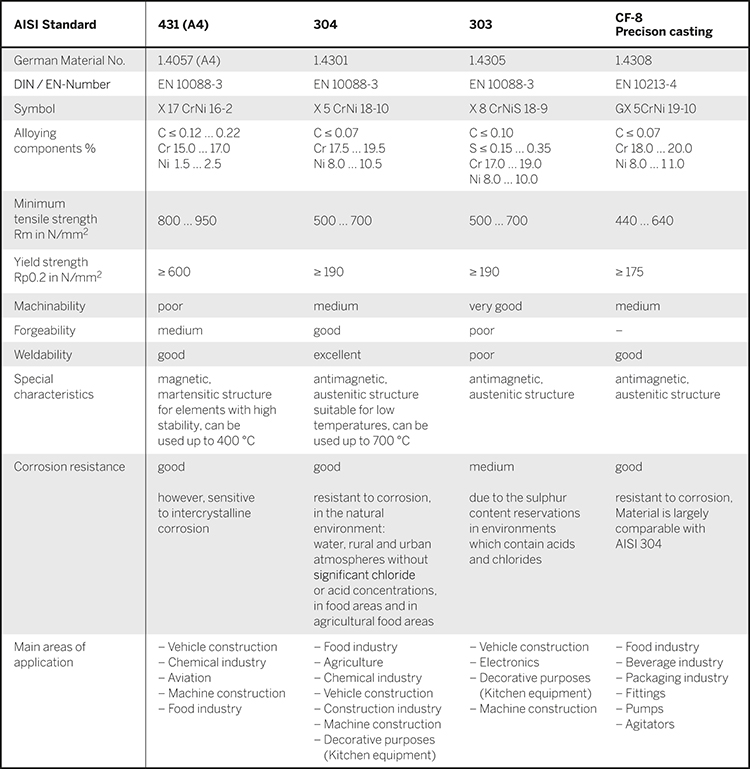

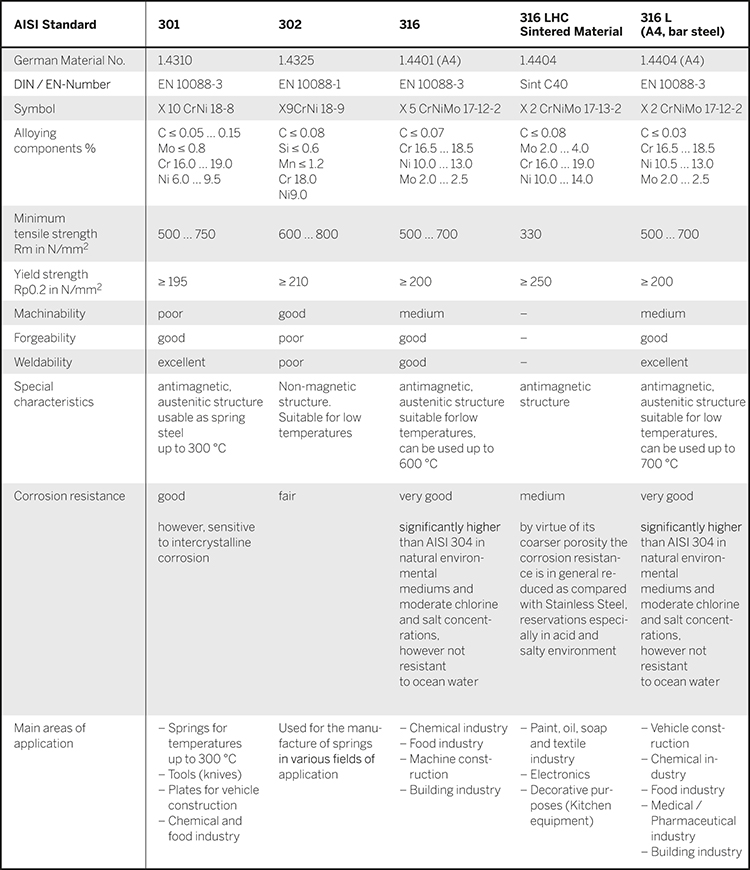

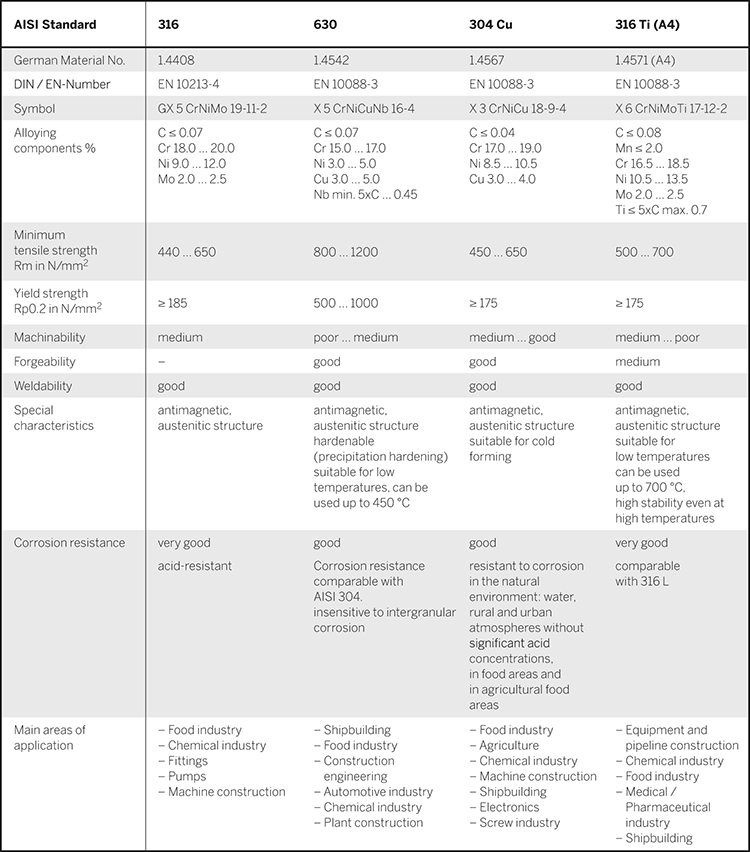

10.11 Stainless Steel characteristics
The characteristics described should be treated as guidelines only. No guarantee is made. The exact conditions of use have to be taken into account individually.
-
